Plumbing, why make it so difficult!

H

HOJ

Sapling
Joined
Nov 26, 2020
Messages
348
Reaction score
187
Location
South Norfolk
Name
Paul
I still do some plumbing on the side, not much nowadays though, anyway call comes in, "Plumber" has let me down, need to fit shower valve, OK, i'll come and have a look, (generally 2 pipes on to a backplate job done) nope, look at this little lot:


Multi function nighmare..I really need to learn to say NO.

Nice neat job there, I had to remove a heap of plasterboard to find a leak on a similar job once, no fun at all!
I’m sure that won’t be the case with yours, mine was a real cowboy job.

As Ian says, very neat job. But ...I can't get my head round what's going on ...


And I thought Hans Grohe was complicated :shock:

pipe on the right looks like it goes behind the wooden panel and is one of the two to the left of that panel so is actually a hot or cold feed in. any idea what make the mixer is?

Pipe does as Flying Haggis outlined, had to send it back behind to pick up the cold feed, that loose end pipe is destined for a handset connection, but that's another problem to yet to be resolved, there is another of these to do as yet, on a masonry wall!!.

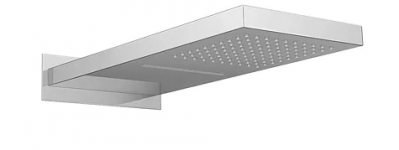

The shower head is a big lump sticks out 500mm, with rainfall/waterfall option all came from Porcelonsa:
shower head.png

Well, look on the bright side - you get a free tape measure! :)

Got to admit those rainfall/waterfall heads can be a bit of a pain you’ve certainly got to get your pipework spot on if the head is gonna fit when it’s all tiled, did this one a while back.


But that was child’s play compared to the matching bath filler


Unbelievably I had to re-engineer the base fixing plate to get everything to fit :?

Nicely done, Doug,
Doug":3c0i16ch said:
But that was child’s play compared to the matching bath filler
Click to expand...
there is a bath tap to do on this one as yet, with some strange floor base unit, looks similar to yours, what did you have to modify?

The bolts that held the tap upstand to the base were misaligned Paul, I ended up altering the bolt holes & also turning down the heads on the cap nuts slightly, not what you expect on an expensive tap.
